| Name: | Zentrifuge | Modell: | BR-Mini-4G |
|---|---|---|---|
| Motor: | DC24V DC-Permanentmagnetmotor | Steuermodus: | PI-Direktantrieb |
| Maximale Drehzahl: | 4000 U/min, ±3 % | Max Relative Centrifugal Force: | 990×g |
| Schnellste Beschleunigungszeit: | ≤3s | Schnellste Verzögerungszeit: | ≤3s |

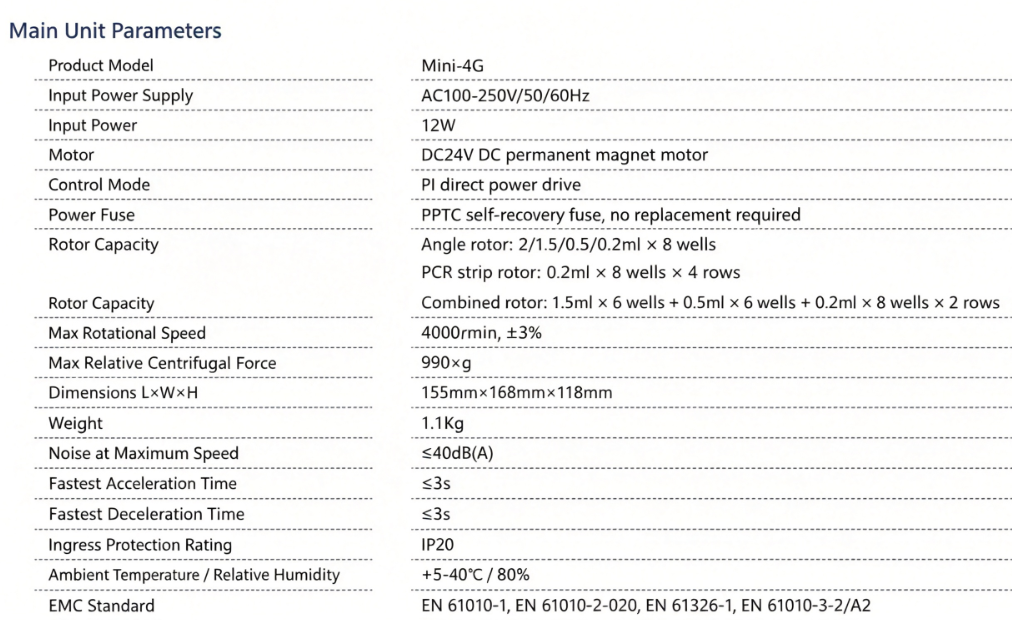

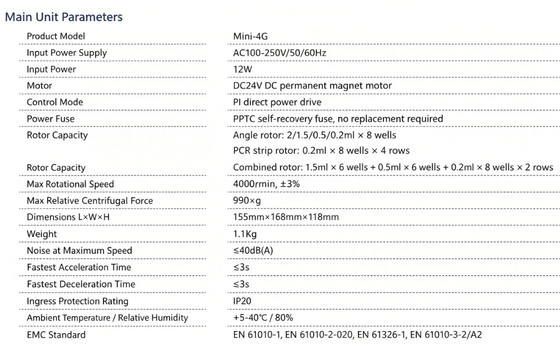

Centrifuge BR-Mini-4G Input Power Supply: AC100-250V/50/60Hz Input Power: 12W Motor: DC24V DC permanent magnet motor Control Mode: PI direct power drive Power Fuse: PPTC self-recovering fuse, no replacement required Rotor Capacity: Angle rotor: 2/1.5/0.5/0.2ml × 8 wells PCR strip rotor: 0.2ml × 8 wells × 4 rows Combined rotor: 1.5ml × 6 wells + 0.5ml × 6 wells + 0.2ml × 8 wells × 2 rows Max Rotational Speed: 4000r/min, ±3% Max Relative Centrifugal Force: 990×g Dimensions (L
